Description

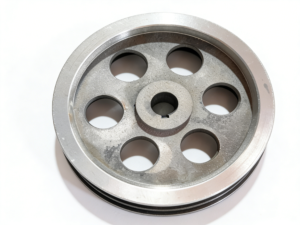

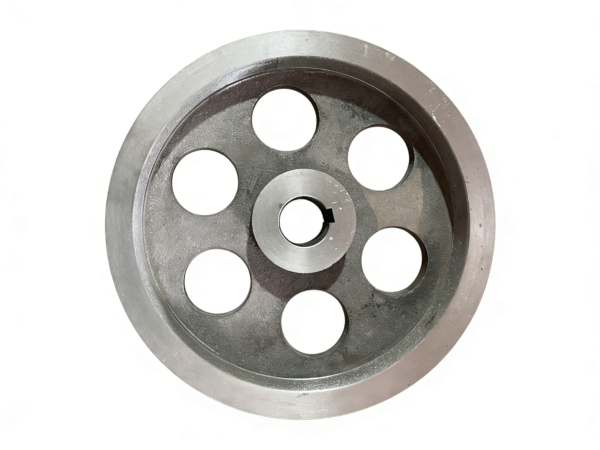

Product OverviewOur SPB-380 cast iron v belt pulley is a high-performance power transmission component, designed in strict accordance with ISO 4183 and DIN 2215 standards, which is widely used in various industrial fields. Made of high-quality gray cast iron (HT250), this pulley features excellent wear resistance, heat absorption and high durability, ensuring stable operation even in harsh industrial environments.
Key Specifications
-
Model: SPB-380
-
Material: Premium Gray Cast Iron (HT250), cast molding for high density and stable performance
-
Pitch Diameter: 380mm (standard size, customizable)
-
Groove Angle: 38° (complies with SPB series standard, fit for pulley diameter ≥200mm)
-

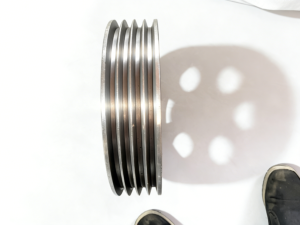

Groove Quantity: 1-8 grooves (customizable, 4-5 grooves as common specifications)
-
Standard: ISO 4183 / DIN 2215, interchangeable with international standards
-
Application: Electric motors, pumps, fans, conveyor systems, mining equipment, agricultural machinery and other high-torque transmission scenarios
Product Features
-
High Durability: Made of high-quality cast iron, strong load-bearing capacity, wear-resistant and corrosion-resistant, long service life.
-
Precision Transmission: Dynamic balancing treatment, smooth operation, low noise, no deviation during high-speed rotation, ensuring efficient power transfer (transmission efficiency up to 95%+).
-
Easy Installation: Compatible with taper lock bushing, easy to disassemble and maintain, saving time and labor costs for your equipment maintenance.
-
Customizable Service: We provide custom machining services for bore size, keyway, surface treatment (painting, galvanizing) according to your shaft size and equipment requirements.
Why Choose Us?
As a professional manufacturer with 10+ years of experience in power transmission components, we strictly control the quality of each SPB-380 pulley. 100% inspection before shipment, material certificate provided. We offer competitive factory prices, fast delivery (15-30 days after payment) and professional after-sales service. For bulk orders, we provide preferential prices and free samples. Contact us now to get a quote!
